With the popularization of new energy, lithium batteries have become increasingly widespread in various industries. From industrial equipment and medical devices to telecommunications, data centers, and household applications, we are growing more and more dependent on batteries and their supporting Battery Management Systems (BMS). Despite their ubiquity, most people know little about BMS—often dismissing it as a simple module. In reality, a BMS is a complex, critical component that safeguards battery performance, extends lifespan, and ensures safety. In this blog, we’ll break down how a BMS works, its core functions, key considerations for designing a suitable BMS (including series-parallel battery connections), and how to address advanced customer needs like communication interfaces such as CAN, RS485, and UART.
What Is a Battery Management System (BMS)?
A Battery Management System (BMS) is an intelligent electronic system designed to monitor, protect, and optimize lithium battery packs. It acts as the “brain” of the battery pack, overseeing every aspect of the battery’s operation to ensure reliability, safety, and longevity. Unlike a simple on-off switch, a BMS continuously collects data, makes real-time adjustments, and intervenes when risks arise—making it indispensable for any lithium battery system, regardless of size or application.
How Does a Battery Management System (BMS) Work?

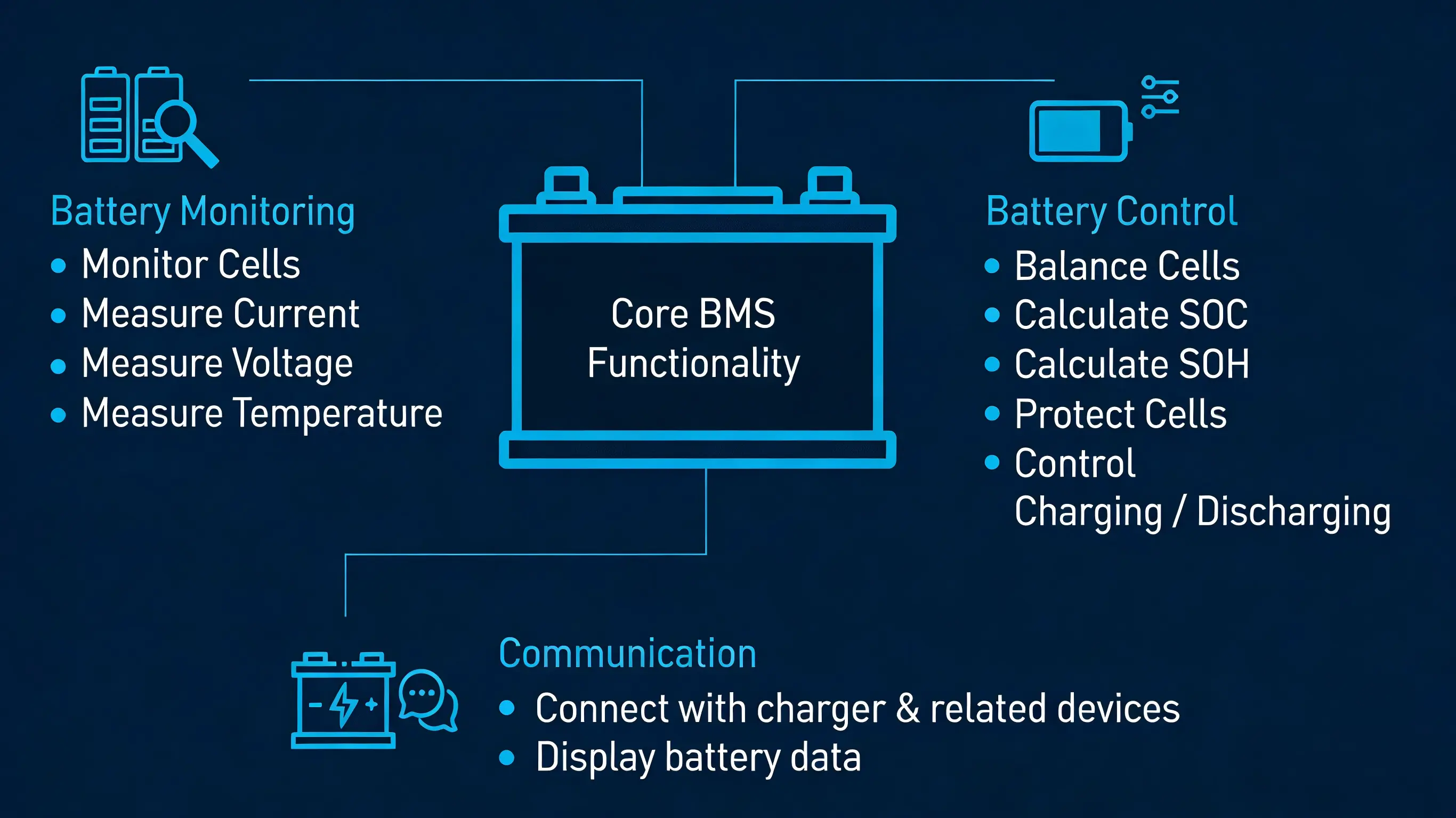

A BMS operates through three core functions: monitoring, balancing, and protection. These functions work together to keep the battery pack running efficiently and safely, even in harsh or high-demand environments. Let’s break down each function in detail:
Real-Time Monitoring: Tracking SOC, SOH, and Key Parameters
The foundation of BMS operation is real-time monitoring of the battery pack’s status. The BMS collects data from each individual battery cell (and the pack as a whole) to provide critical insights, including two key metrics: SOC (State of Charge) and SOH (State of Health).
- SOC (State of Charge): This is the battery’s remaining capacity, expressed as a percentage (similar to a fuel gauge in a car). The BMS calculates SOC by measuring voltage, current, and temperature, ensuring accurate readings to prevent over-discharging (which damages batteries) or under-utilization of capacity.
- SOH (State of Health): This measures the battery’s overall condition compared to its original capacity. Over time, lithium batteries degrade—SOH tracks this degradation, alerting users when the battery needs maintenance or replacement. A BMS uses long-term data on charge/discharge cycles, voltage changes, and temperature exposure to calculate SOH.
In addition to SOC and SOH, the BMS monitors cell voltage, pack current, and temperature. This data is critical for identifying issues early, such as a single cell performing poorly (a “weak cell”) or the pack overheating.
Cell Balancing: Ensuring Uniform Charge/Discharge
Lithium battery packs are made of multiple cells connected in series or parallel. Over time, individual cells may degrade at different rates, leading to voltage imbalances. A cell with lower capacity will charge faster and discharge sooner, putting stress on the entire pack and shortening its lifespan.
The BMS solves this with cell balancing—a process that equalizes the voltage across all cells in the pack. There are two main types of balancing:
- Passive Balancing: Discharges excess voltage from overcharged cells (via resistors) to match the voltage of weaker cells. Cost-effective and simple, it’s ideal for low-power applications like household devices.
- Active Balancing: Transfers energy from overcharged cells to undercharged cells, rather than wasting it as heat. More efficient and suitable for high-power applications like industrial equipment, data centers, and electric vehicles.
By keeping cells balanced, the BMS ensures the entire pack operates in sync, maximizing capacity and extending the battery’s overall lifespan.
Safety Protection: Preventing Hazards & Failures
Safety is the most critical function of a BMS. Lithium batteries can pose risks (such as fire or explosion) if overcharged, over-discharged, short-circuited, or overheated. The BMS acts as a safety net, detecting abnormal conditions and taking immediate action to protect the battery, equipment, and users.
Key safety features of a BMS include:
- Overcharge Protection: Disconnects the charging circuit when the battery reaches full capacity, preventing voltage from exceeding safe limits.
- Over-Discharge Protection: Cuts off the discharge circuit when the battery’s SOC drops too low, avoiding irreversible damage to cells.
- Short Circuit Protection: Quickly disconnects the battery if a short circuit is detected, preventing excessive current flow that can cause overheating or fire.
- Thermal Protection: Monitors battery temperature and shuts down the pack if it exceeds safe thresholds (either too hot or too cold), preventing thermal runaway.
In the event of a fault, the BMS will disconnect the battery pack from the load or charger—stopping further damage and ensuring safety.
How to Design a Suitable BMS: Key Considerations
Designing a BMS is not a one-size-fits-all process. The right BMS design depends on the battery pack configuration, application requirements, and customer needs. Below are the critical factors to consider when designing a suitable BMS:
Battery Pack Configuration: Series vs. Parallel Connections
Lithium battery packs are typically connected in series, parallel, or a combination of both. The BMS design must match the pack’s configuration to ensure effective monitoring and protection.
- Series Connections: Increases the pack’s voltage (e.g., 4 cells in series × 3.7V = 14.8V). The BMS must monitor each cell’s voltage individually to prevent imbalances, as a single weak cell can compromise the entire pack. For series packs, choose a BMS with a series count (S) that matches the number of cells (e.g., 4S for 4 cells in series).
- Parallel Connections: Increases the pack’s capacity (Ah), allowing longer discharge times. The BMS must monitor the total current and balance the current distribution across parallel cells to avoid overloading individual cells. For parallel packs, the BMS must support higher continuous discharge currents to handle the increased capacity.
- Series-Parallel Combinations: Common in high-power applications (e.g., industrial equipment, data centers). The BMS must monitor both individual cell voltages (for series balance) and total current (for parallel safety), requiring more advanced monitoring and balancing capabilities.
When designing a BMS for series-parallel packs, ensure the system can handle the pack’s total voltage and current, and include robust cell balancing to maintain uniformity across all cells.
Application-Specific Requirements
The BMS design must align with the application’s unique demands. For example:
- Industrial/Medical Applications: Require high reliability and stability, with strict safety standards. The BMS should include redundant protection features and support for long-term, continuous operation.
- Data Centers/Telecommunications: Need 24/7 monitoring and quick fault response to avoid power outages. The BMS should integrate with the facility’s monitoring system and provide real-time alerts.
- Household Applications: Prioritize cost-effectiveness and simplicity, with basic balancing and protection features (passive balancing is often sufficient here).
Advanced Customer Needs: Communication Interfaces (CAN, RS485, UART)
As customer needs evolve, many require BMS with communication interfaces to enable data exchange, remote monitoring, and integration with other systems. The most common interfaces include:
- CAN (Controller Area Network): Ideal for high-speed, reliable communication in industrial and automotive applications. It allows the BMS to connect with other components (e.g., chargers, inverters) and transmit data in real time.
- RS485: Suitable for long-distance communication (up to 1000 meters), making it perfect for large-scale systems like data centers or industrial facilities where the BMS is located far from monitoring stations.
- UART (Universal Asynchronous Receiver/Transmitter): A simple, low-cost interface for short-distance communication, often used in household devices or small-scale applications.
When designing a BMS for customers with advanced needs, integrate the appropriate communication interface to enable remote monitoring, data logging, and system integration—enhancing the BMS’s functionality and value.
Component Selection: Durability & Performance
The BMS’s performance depends on the quality of its components. Choose high-quality sensors (for voltage, current, temperature), MOSFETs (for switching circuits), and microcontrollers (for processing data) to ensure reliability. For harsh environments (e.g., industrial or outdoor applications), select components with high temperature resistance and waterproofing to withstand extreme conditions.
Conclusion: The BMS Is More Than a Simple Module
A Battery Management System (BMS) is a complex, intelligent system that plays a critical role in the safety, performance, and longevity of lithium battery packs. From monitoring SOC and SOH to balancing cells and providing safety protection, the BMS ensures batteries operate efficiently across all industries—industrial, medical, telecommunications, data centers, and households.
Designing a suitable BMS requires careful consideration of battery configuration (series/parallel), application requirements, and advanced customer needs like communication interfaces. By prioritizing these factors, you can create a BMS that meets the unique demands of any battery system.
